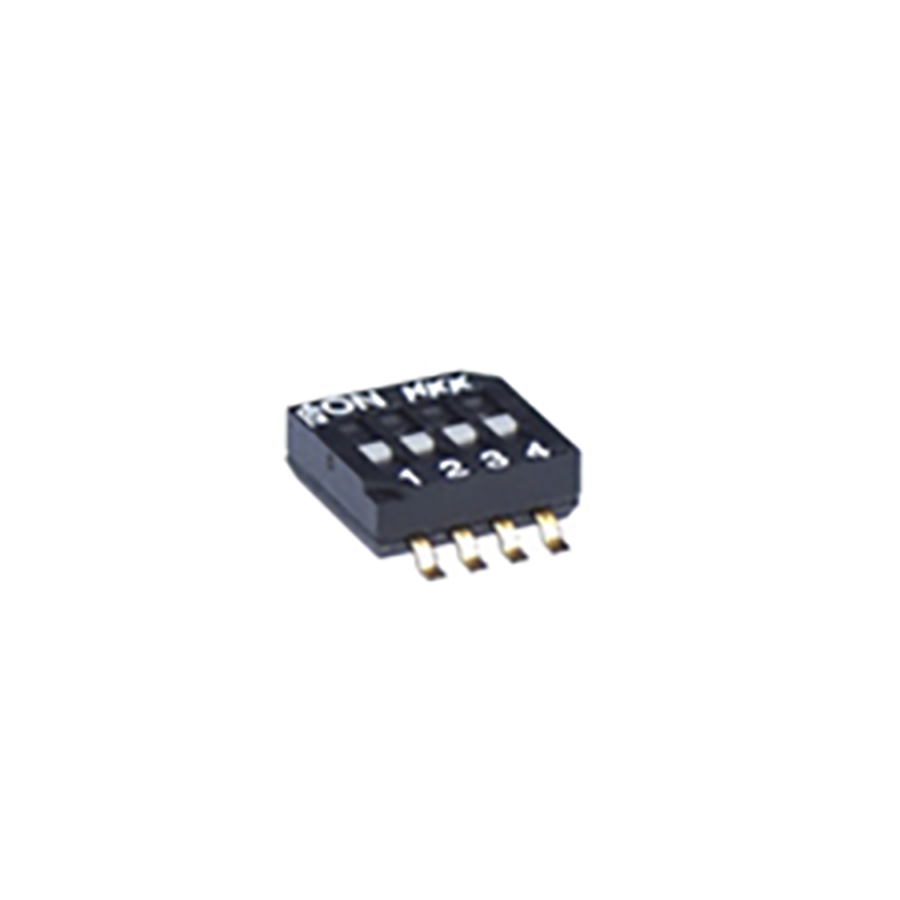

JS0404FP4-S
Manufacturer:
NKK Switches
Mfr.Part #:
JS0404FP4-S
Datasheet:
Description:
DIP Switches SMD/SMT SPST Number of Positions:4 Current Rating:25 mA Slide (Standard)
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 6.223 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Circuit Type | SPST |
| Packaging | Tube |
| Depth | 8.1 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Lead/Base Style | Gull Wing |
| Pitch | 1.27 mm |
| Terminal Pitch | 2.54 mm |
| Current Rating | 25 mA |
| Max Current Rating | 25 mA |
| Number of Circuits | 4 |
| Orientation | Straight |
| Body Material | Glass, Nylon, Polyamide |
| Throw Configuration | SPST |
| Number of Positions | 4 |
| Electrical Life | 2 kcycles |
| Mechanical Life | 2 kcycles |
| Actuator Type | Slide (Standard) |
| Washable | No |
